SYSTEM OVERVIEW
A building envelope that defines both performance and appearance
Curtain wall systems form the external skin of a building, allowing glass, aluminium framing, and façade components to work together as one architectural envelope.
KW Synergy designs and installs aluminium curtain wall systems for commercial, residential and high-rise developments across Malaysia, including projects throughout the Klang Valley and major township developments.
01 / CURTAIN WALL TYPES
Systems designed for different architectural and site requirements

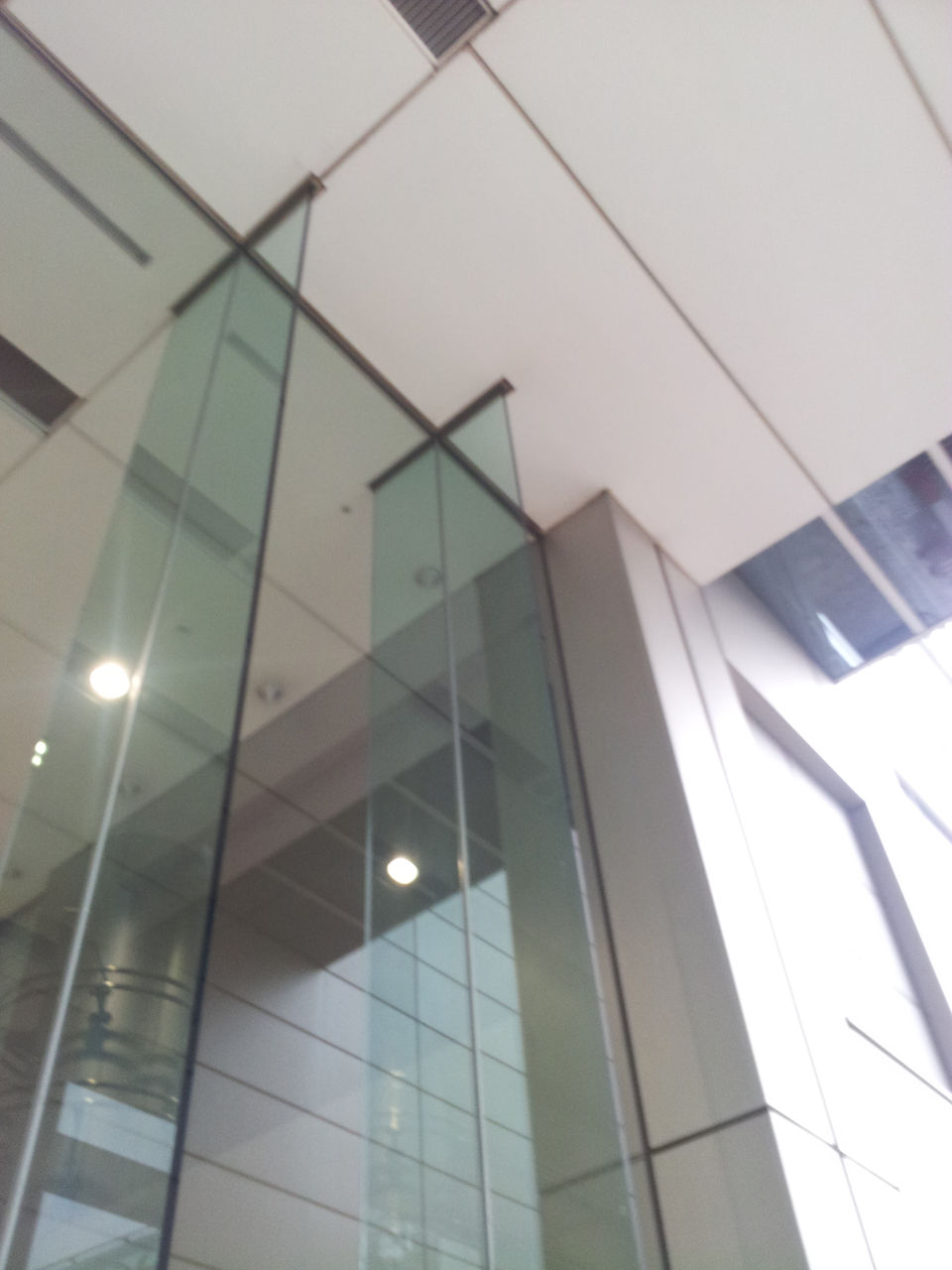

A frameless glass façade system using stainless steel spider fittings for high transparency and minimal visual obstruction.
Spider Glass System
Factory-assembled curtain wall panels designed for higher quality control, faster installation, and improved weather performance.
Unitized System
A flexible stick curtain wall system assembled on-site using vertical mullions and horizontal transoms.
Mullion-Transom System
02 / FEATURED SYSTEM
Unitized curtain wall for high-rise performance
Unitized curtain wall panels are pre-assembled under controlled conditions before being installed on-site, improving consistency, speed, and overall façade quality.
✓ Factory-controlled fabrication
✓ Faster site installation
✓ Improved water and air tightness
✓ Better movement accommodation between floors
03 / DESIGN + ENGINEERING
Design as Art. Engineered with Precision
Designed around structural movement, differential slab deflection, water management, air infiltration and thermal expansion.
Our curtain wall solutions balance architectural appearance with practical performance, site coordination, fabrication control, and long-term building reliability
04 / PERFORMANCE GLAZING
Glass Solutions
Designed Around Performance
Every project has different acoustic, thermal, safety and fire performance requirements. KW Synergy helps specify the right curtain wall glazing system based on design intent, site conditions and required performance standards.
Standard Insulated Glass
RESIDENTIAL · COMMERCIAL
TYPICAL CONFIGURATION
6T + 12 Air + 6T
-
General thermal insulation
-
Optional Low-E solar control
-
Cost-effective façade solution
Acoustic Performance
HOTELS · OFFICES · RESIDENTIAL
TYPICAL CONFIGURATION
10.76 Acoustic Lam + 16 Argon
+8T
-
Indicative STC 38-40*
-
Improved external noise reduction
-
Suitable for urban environments
High Acoustic Performance
AIRPORT · URBAN TOWERS · MRT
TYPICAL CONFIGURATION
12.76 Acoustic Lam + 16 Argon + 10T
-
Indicative STC 42-45*
-
Enhanced acoustic comfort
-
For demanding noise-control sites
Solar & Thermal Control
GREEN BUILDINGS · OFFICES
TYPICAL CONFIGURATION
Low-E IGU + Argon
-
Low solar heat gain
-
Improved U-value performance
-
Reduced cooling load
Safety & Security Glass
SCHOOLS · MALLS · PUBLIC AREAS
TYPICAL CONFIGURATION
Laminated Tempered Glass
-
Impact resistance
-
Fragment retention
-
Improved occupant safety
.png){kind=small}
Fire Rated Glass
ESCAPE ROUTES · DATA CENTRES
TYPICAL CONFIGURATION
Certified Fire Rated System
-
30 / 60 / 90 / 120 minutes
-
Fire integrity and insulation options
-
Project-specific certification
* Performance values are indicative only. Final STC, SHGC, U- value and fire rating depend on the complete glazing build-up, framing system, installation method and laboratory testing
